Starters and High Output Alternators
Planetary gear reduction starters and high output charging units matched by terminal pinout at our Charlotte counter. We pull starting motors and charging units for domestic work trucks, European saloons, and delivery vans directly from our Charlotte shelves. Every unit leaves our counter verified for stator amperage, mounting flange pitch, bendix tooth count, and regulator communication protocol. We do not sell universal rotating assemblies that require modifying factory harness plugs.
Replacing a heat soaked starter motor on a commercial cutaway van in Charlotte
A regional parcel contractor operating out of North Mecklenburg brought in an intermittent no-crank ticket for an express delivery cutaway van. The driver experienced rapid solenoid clicks when restarting hot after ten successive drops, while the vehicle cranked normally from a cold morning yard start. Our counter specialist pulled the unit onto our diagnostic bench. High internal resistance across the commutator windings confirmed thermal armature breakdown rather than battery failure.

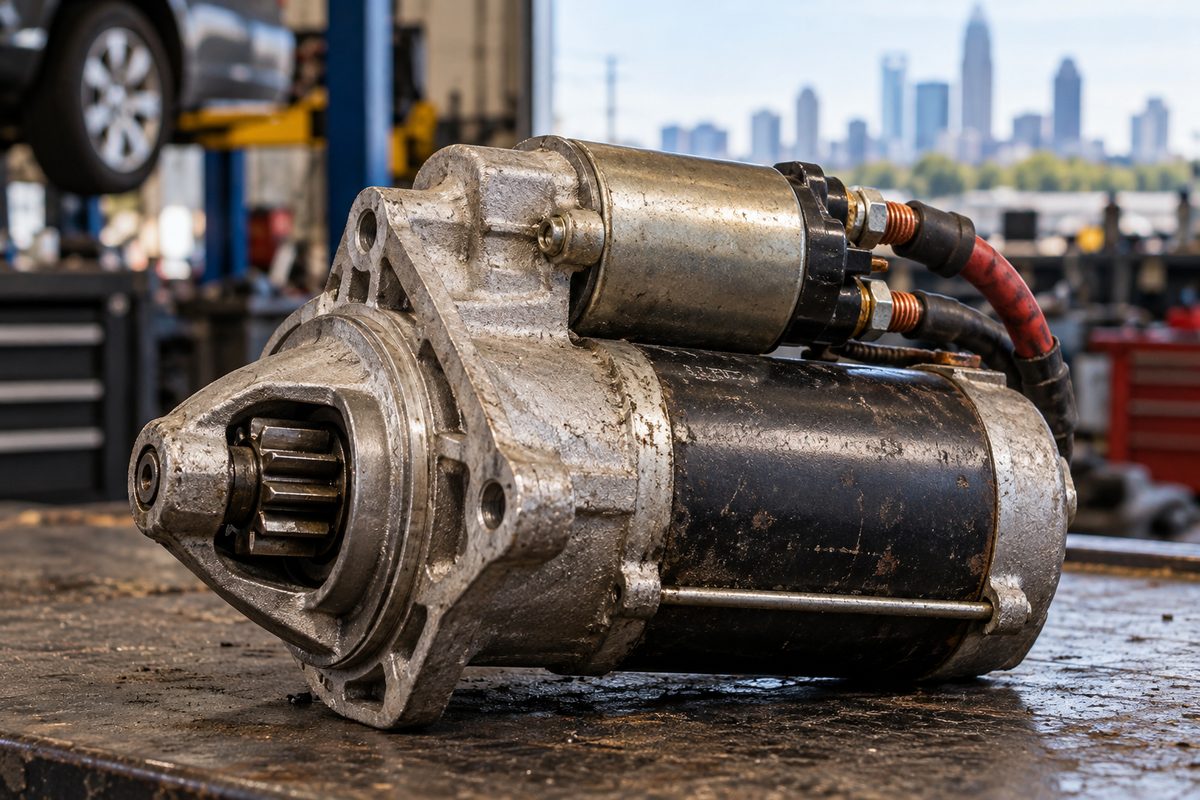

We supplied a permanent magnet gear reduction starter motor equipped with an enclosed planetary gear carriage and copper-graphite brush assemblies. The gear reduction architecture multiplies motor torque while drawing thirty percent less current during hot restart cycles, protecting against starter drag. The replacement unit was boxed with a brand new heat shield sleeve, terminal copper nuts, and mounting hardware.
Upgrading charging capacity for a service utility chassis cab with auxiliary lift gates
A plumbing contractor operating four service trucks in central Charlotte reported repetitive battery discharge on a chassis cab fitted with an electric-hydraulic lift gate and heavy inverter bank. The factory 110-amp alternator could not maintain system voltage above 12.6 volts while idling at customer job sites with beacons running. The vehicle showed premature battery sulfurization across two consecutive quarters.

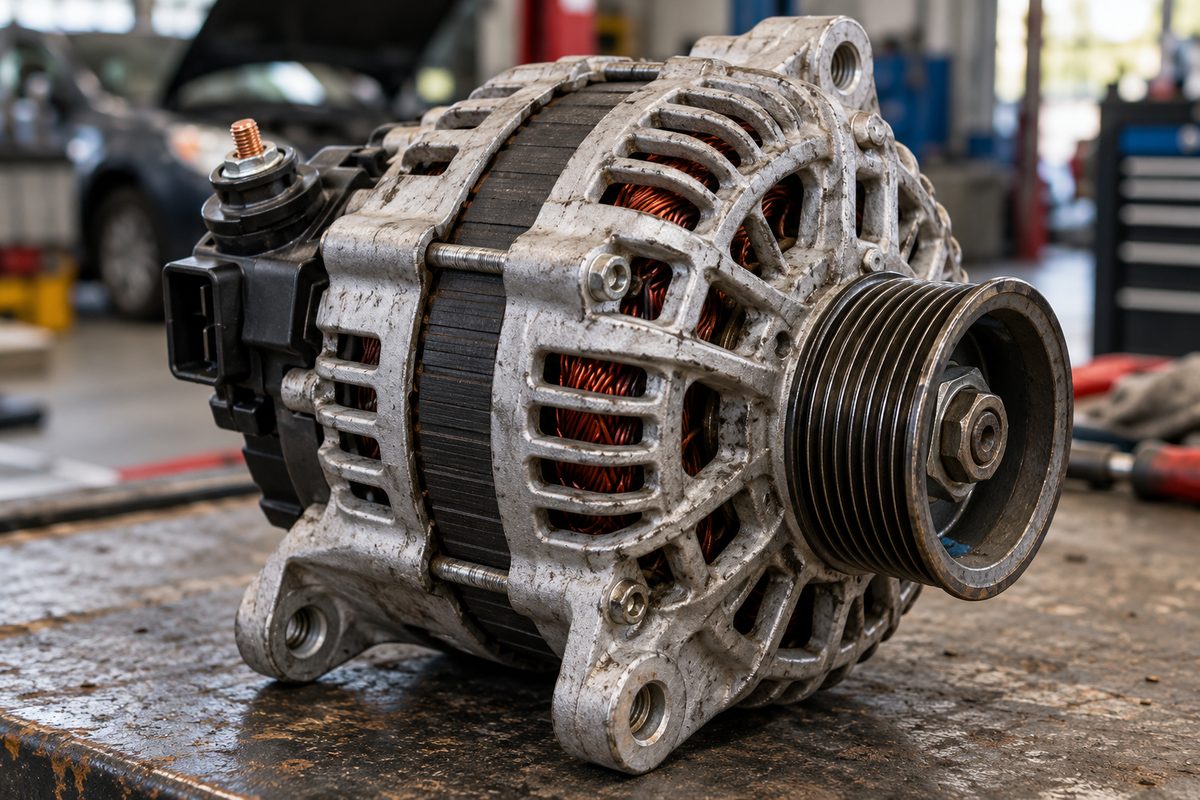

We cross-referenced the vehicle VIN against original mounting brackets and engine accessory clearance to specify a high output 12V 160A automotive alternator. The replacement unit incorporates heavy gauge copper stator coils, a precision balanced dual-bearing rotor, and an internal avalanche diode pack engineered to clamp transient inductive spikes when hydraulic solenoids release. We verified the decoupling pulley diameter to ensure 95 amps of charging output at a 650 RPM engine idle.

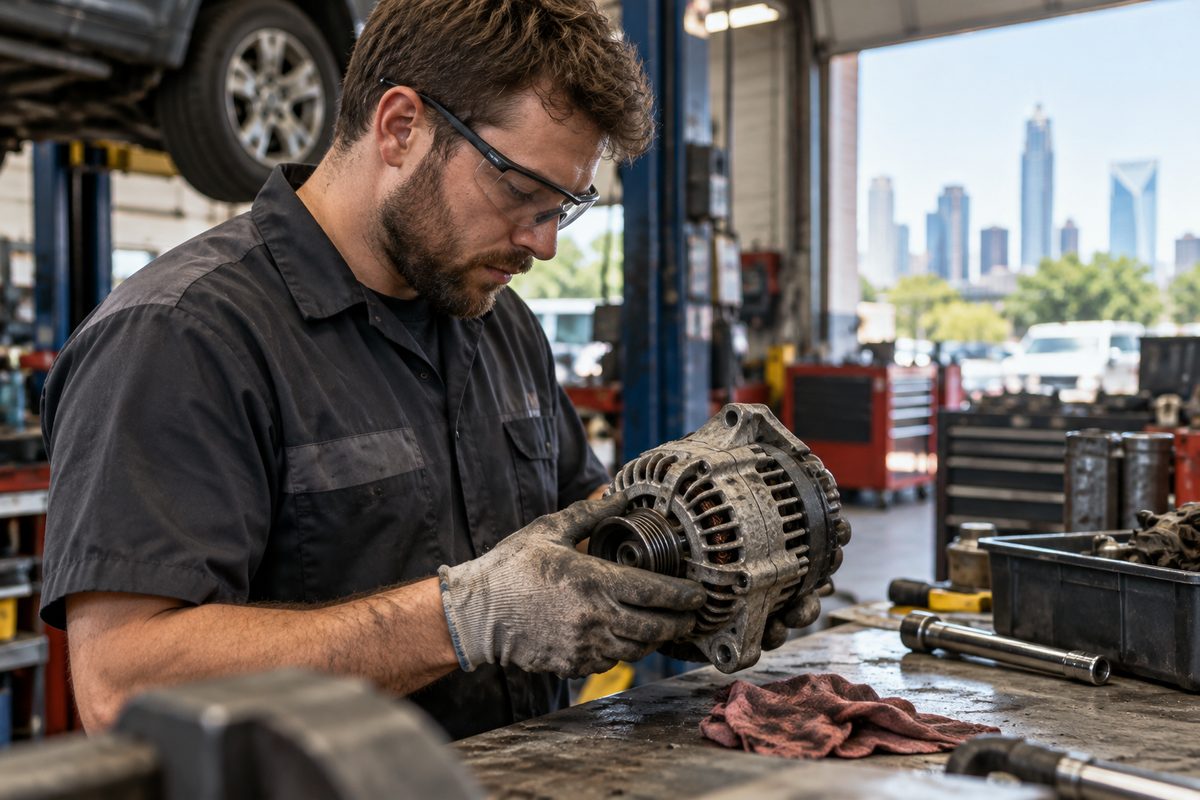

Every rotating unit undergoes load checks before leaving our Charlotte racks
An untested starter or alternator costs three hours of technician labor if it carries a defective regulator or loose bendix spring. Our trade counter spins every remanufactured and new rotating unit under true resistive load before counter handover.
The four step protocol our counter desk uses for rotating electrical orders
Ordering a starter motor or high output alternator by year and model alone causes twenty-two percent of field returns across the automotive trade. Vehicle manufacturers change pulley offsets, amperage outputs, and regulator protocols mid-production cycle. We follow a strict four step verification path on every customer inquiry.
Step one: we record the 17-digit VIN to identify the vehicle chassis harness code and alternator output option code. Step two: we inspect the physical terminal plug configuration, confirming whether the regulator communicates via analog ignition feed, pulsed PWM, or digital LIN network. Step three: we check pulley groove geometry and starter pinion tooth count against original schematics. Step four: we confirm warehouse shelf availability at 606 NC Music Factory Boulevard or schedule same-day courier dispatch across the Carolinas.
| Component Item | Application Range | Key Electrical Specification | Operator Price Bracket |
|---|---|---|---|
| High-Output 12V 160A Alternator Assembly | Light trucks, fleet vans, municipal SUVs | Avalanche diode pack, 160A continuous output, 6-groove decoupler | 229.99–439.99 USD per unit |
| Permanent Magnet Gear Reduction Starter Motor | Passenger sedans, commercial V8 chassis, vans | Planetary gear reduction, high breakaway torque, 11-tooth drive | 209.99–389.99 USD per unit |
| Commercial 24V Heavy Duty Alternator | Class 6–7 commercial trucks and equipment | Brushless rotor design, dual insulated ground, 100A at 24V | 299.99–439.99 USD per unit |
| Heavy-Duty High-Torque Starter Motor | Turbocharged diesel commercial vans | Offset gear reduction, heat-treated solenoid contacts | 249.99–420.00 USD per unit |
Common technician objections regarding remanufactured versus new rotating units answered directly
Installers often ask whether a certified aftermarket analogue starter motor holds up compared to a factory OEM assembly. If a commercial cutaway cycles fifty engine starts per shift, the extra investment in a factory OE unit with heavy silver-alloy contact pads is justified. For standard commute vehicles and light utility delivery, Tier-1 aftermarket units built to ISO 9001 standards perform identically at substantial savings.
We refuse to sell cheap white-box rebuilds with recycled rectifiers or worn slip rings. A remanufactured unit from our counter contains new copper commutator rings, premium carbon brushes, fresh sealed bearings, and pressure-tested solenoids. What our price quote depends on: vehicle make and model, engine displacement, VIN schematic confirmation, whether you select OEM original or aftermarket analogue, and current shelf stock at our Charlotte counter.
Who this service is not for: we do not supply generic universal racing alternators that lack factory mounting brackets, and we do not provide rebuild kits for DIY workbench rewinding. We deliver complete, tested assemblies ready for direct bolt-on installation.
Request a verified starter or alternator quote
Enter your vehicle details, engine code, or VIN. Our Charlotte parts manager will verify terminal pinout and inventory allocation.
