Fuel Delivery and In-Tank Pumps
In tank fuel pump assembly and mechanical direct injection pumps verified against engine trim. We stock calibrated fuel feed modules, low-pressure lift pumps, and camshaft-driven high-pressure GDI pumps for modern direct injection engines. Every unit is checked for electrical plug configuration, sender resistance range, and internal relief pressure before leaving our Charlotte warehouse.
Diagnosing high pressure fuel rail drop on a 2017 Hyundai Sonata 2.4L GDI in Charlotte
A mobile diagnostic technician based in University City came to our counter with diagnostic trouble code P0087 (Fuel Rail/System Pressure Too Low). The engine sputtered heavily under acceleration above three thousand RPM. The vehicle already had a new low-pressure fuel pump fitted in the gas tank, but rail pressure flatlined at 450 PSI under load rather than the factory-commanded 2,100 PSI.

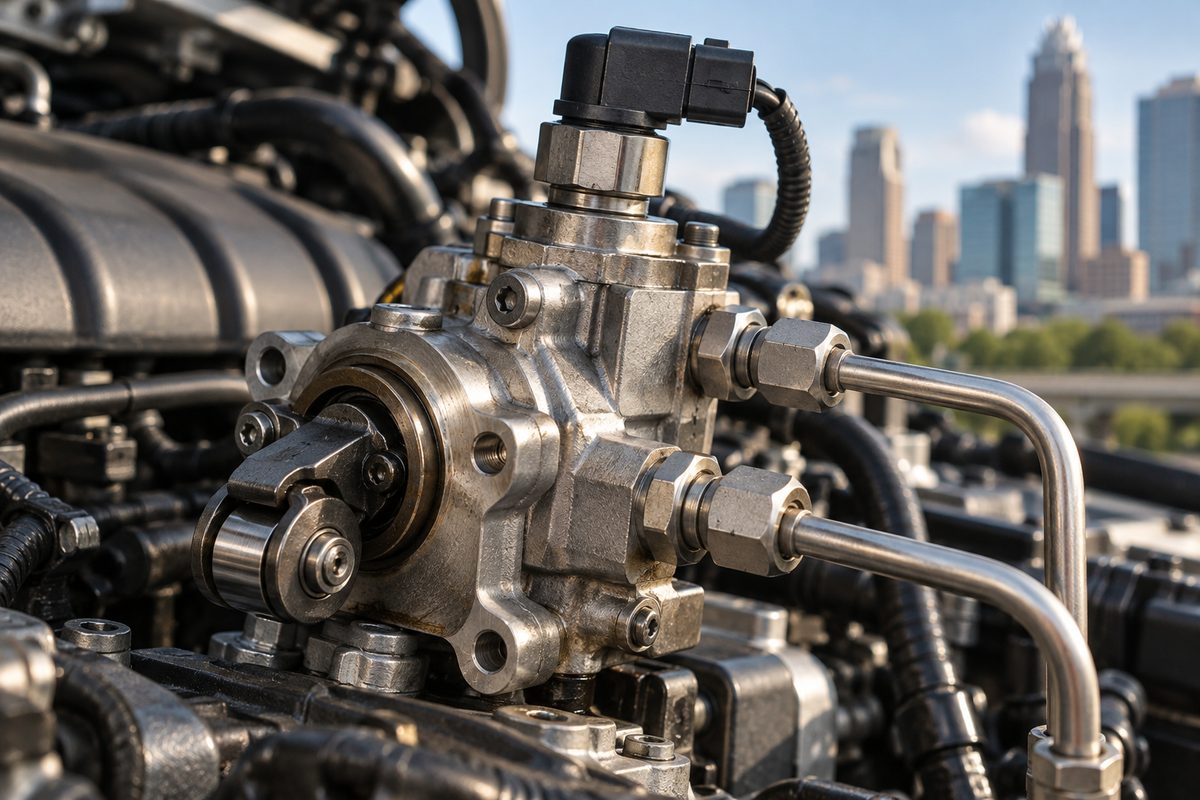

We verified the mechanical high-pressure pump mounted to the cylinder head. The internal spill valve had failed and the roller tappet showed heavy flat-spot wear against the exhaust camshaft fuel pump lobe. We supplied a brand-new mechanical high-pressure fuel pump assembly along with a hardened replacement roller follower and replacement high-pressure flare line.
Supplying a complete in-tank modular fuel pump for a 2012 Ford F-150 5.0L extended cab
A general repair facility located on Freedom Drive called our counter for a fuel pump module on an F-150 that would crank but refused to start. Fuel rail test port pressure showed zero PSI. The original modular assembly had melted its electrical bulkhead pin due to excessive resistance from a clogged in-tank sock filter.
Ford produced three distinct fuel tank sizes for the 2012 F-150: 26-gallon, 36-gallon, and 35.7-gallon mid-ship tanks. Each tank uses a different sender depth and float arm geometry. We decoded the VIN and verified the factory wheelbase to confirm the 36-gallon extended range tank specification. We pulled the complete in-tank electric fuel pump module containing the turbine pump, calibrated fuel level sender float, new tank seal ring, and lock ring from our Charlotte warehouse rack.
Verified fuel pump catalogue pricing and mechanical pressure ratings
Fuel delivery prices at AutoMoto Shop follow the operator’s confirmed trade schedule: 84.99 to 600.00 USD per unit. We do not sell cheap universal fuel pumps that require splicing wires inside the gas tank. We carry drop-in modular assemblies and precision-machined mechanical pumps from original equipment manufacturers and certified Tier-1 equivalents. Quote variance is governed strictly by vehicle make, chassis generation, tank configuration, brand, and warehouse location.
| Fuel System Class | Typical Applications | Delivery Pressure & Flow | Price Range | Package Inclusions |
|---|---|---|---|---|
| In-Tank Electric Module | Domestic & import trucks, sedans, SUVs | 45–65 PSI, 120–180 LPH | 84.99–349.99 USD | Pump, strainer, float, lock ring & seal |
| GDI High-Pressure Pump | Modern direct-injected 4-cyl, V6, V8 | 120–200 Bar (1,740–2,900 PSI) | 180.00–600.00 USD | Pump body, solenoid, mounting O-ring |
| Bare In-Tank Replacement Turbine | Select import applications, pre-2010 | 40–55 PSI, 90–140 LPH | 84.99–149.00 USD | Electric pump core, inlet strainer sock |
| Diesel High-Pressure CP4/Common Rail | Commercial 6.7L light trucks & vans | 1,800–2,200 Bar Common Rail | 480.00–600.00 USD | Pump unit, metering valve, high-pressure seal |
The counter fuel delivery protocol: how we verify fitment and avoid early pump burnout
Over eighty percent of replaced in-tank fuel pumps fail prematurely because the installation technician did not clean the fuel tank before dropping in the new module. Fine sand and rust sediment at the bottom of the tank destroy the new pump impeller within days. Our counter enforces a strict four-step verification process on all fuel delivery inquiries.
Chassis and Bed Length Check
We confirm whether the vehicle is a short bed, standard bed, or long bed. Fuel pump modules have spring-loaded legs designed to touch the bottom of specific tank depths; an incorrect module will either bend or read empty with ten gallons remaining.
Harness Pinout & Wire Gauge Check
We verify whether the vehicle harness uses a 4-pin square connector or a 4-pin flat connector. Many manufacturers changed the pinout mid-year to add a fuel temperature sensor or a digital level signal.
Cleanliness Protocol Before Drop-In
We require that the fuel tank be drained, inspected, and wiped free of sediment prior to installing the new pump. Warranty returns showing brown particulate inside the inlet strainer sock cannot be accepted by the factory.
Cam Tappet & High-Pressure Line
For mechanical direct injection pumps, we verify the condition of the camshaft drive lobe and mandate replacement of the single-use flare fitting line to prevent fuel leaks under high pressure.
Common fuel delivery objections and trade counter technical answers
Can I buy just the bare electric fuel pump instead of the whole module?
While bare pumps cost less upfront, we generally recommend the complete in-tank modular fuel pump module. The plastic bucket, corrugated flex hose, level sensor contact card, and pressure regulator in your ten-year-old tank are already brittle. Replacing just the bare pump frequently leaves you with a broken float arm or a fuel pressure leak inside the tank next month.
Do you carry high-pressure direct injection pumps for European applications?
Yes, we stock direct-fit mechanical GDI pumps for BMW, Audi, Volkswagen, Mercedes-Benz, Hyundai, and Ford EcoBoost applications. We verify the manufacturer revision stamp because supersessions occur frequently to address noise and cold-start pressure bleed-off.
Who is this counter service not for?
We do not sell universal external inline racing pumps for carbureted race cars or non-standard fuel cells. We supply exact-fit original and OEM-tier replacement assemblies for road vehicles and commercial fleets.
Inquire about fuel pump specification and Charlotte warehouse inventory
State your vehicle make, model, year, and 17-digit VIN below. Our counter technical team will verify the fuel tank volume, pressure specifications, and connector pinouts to confirm exact fitment at our 606 NC Music Factory Boulevard facility. This is an assisted specification inquiry, not an unassisted checkout.
