G3000 Grey Iron Vented Brake Rotors
Mill-balanced geometry with lateral runout under 0.001 inches. Cast iron rotors will warp if you torque the wheel lugs unevenly on a hot hub; we stock coated blanks balanced to within two grams. Our Charlotte counter provides vin matched brake rotors for front directional vanes and solid rear axle configurations across domestic and import vehicle platforms.
Supplying coated vented rotors and low-dust pads for a 2017 Ford F-150 fleet in Charlotte
A commercial mechanical contractor operating six 2017 Ford F-150 work trucks in North Charlotte was dealing with severe steering wheel shudder during highway deceleration on Interstate 85. The trucks were running cheap economy rotors with inconsistent metallurgy. Thermal imaging at their fleet maintenance bay revealed disc thickness variation (DTV) exceeding 0.0018 inches after fifteen thousand miles, causing pulsating hydraulic feedback straight into the driver’s brake pedal.

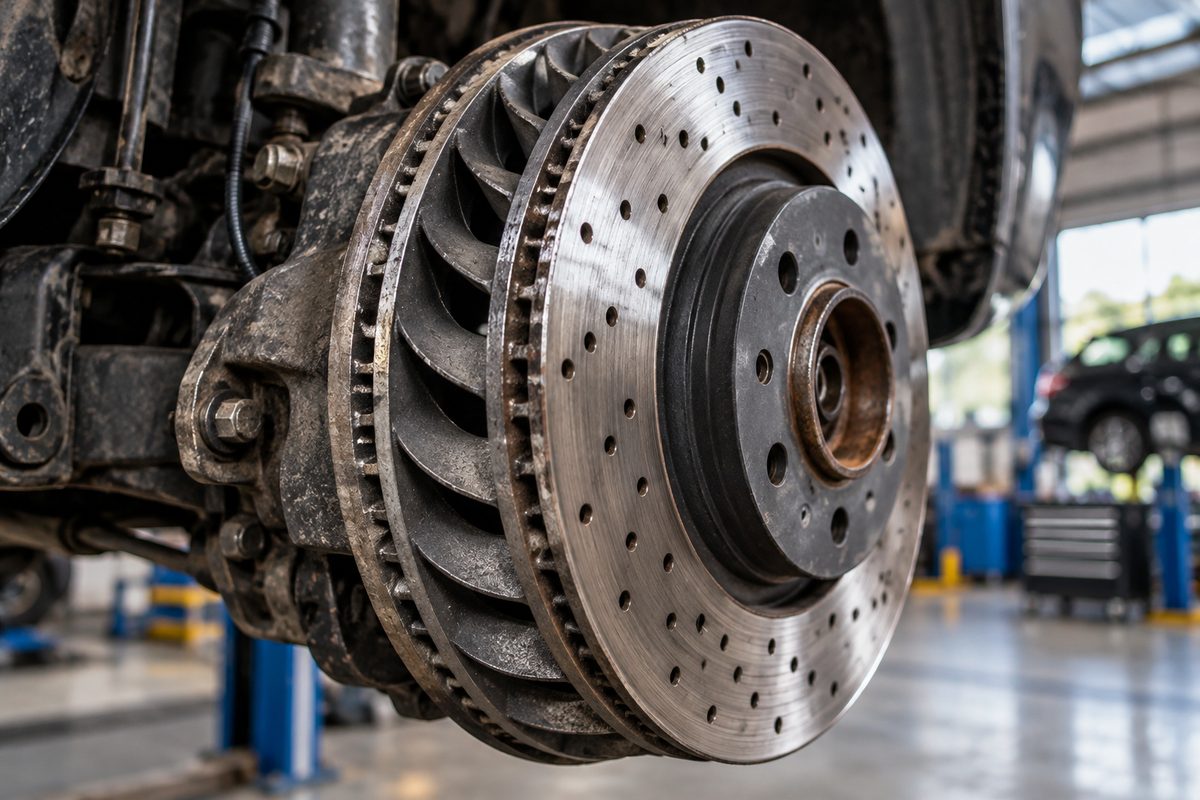

Our Parts Manager decoded each truck’s 17-digit VIN to confirm whether the front axles were equipped with standard 336mm discs or the heavy-duty 350mm package paired with electric parking brake calipers. We pulled Vented G3000 Grey Iron Front Brake Rotors from our warehouse racks at 606 NC Music Factory Boulevard. These discs are cast with high-carbon grey iron for thermal dampening, precision turned on CNC lathes, and 100 percent mill-balanced with perimeter edge cuts to eliminate rotational vibration. The internal directional cooling vanes pull heat away from the wheel bearings forty percent faster than straight-vane budget blanks. The entire non-friction hat and outer rim are electrostatically coated with zinc dichromate to prevent cosmetic rust bonding to the wheel hub.
The contractor collected all twelve front rotors along with low-dust ceramic pads directly from our counter will-call. Dial indicator runout measurements upon hub installation registered 0.0007 inches across all units, permanently eliminating the front-end braking pulse.
Validating solid rear new rotors and hub offset dimensions for four 2019 Honda Accord sedans in Matthews
A dealership collision and mechanical center in Matthews called our desk after receiving incompatible rear rotors from an online automated parts distributor. The online catalogue had dispatched rear rotors with an incorrect hat height of 48.2 millimeters instead of the required 42.0 millimeters specified for electronic parking brake equipped 1.5L turbo trims. The outer edge of the rotor disc was physically scraping against the inner caliper carrier bracket.

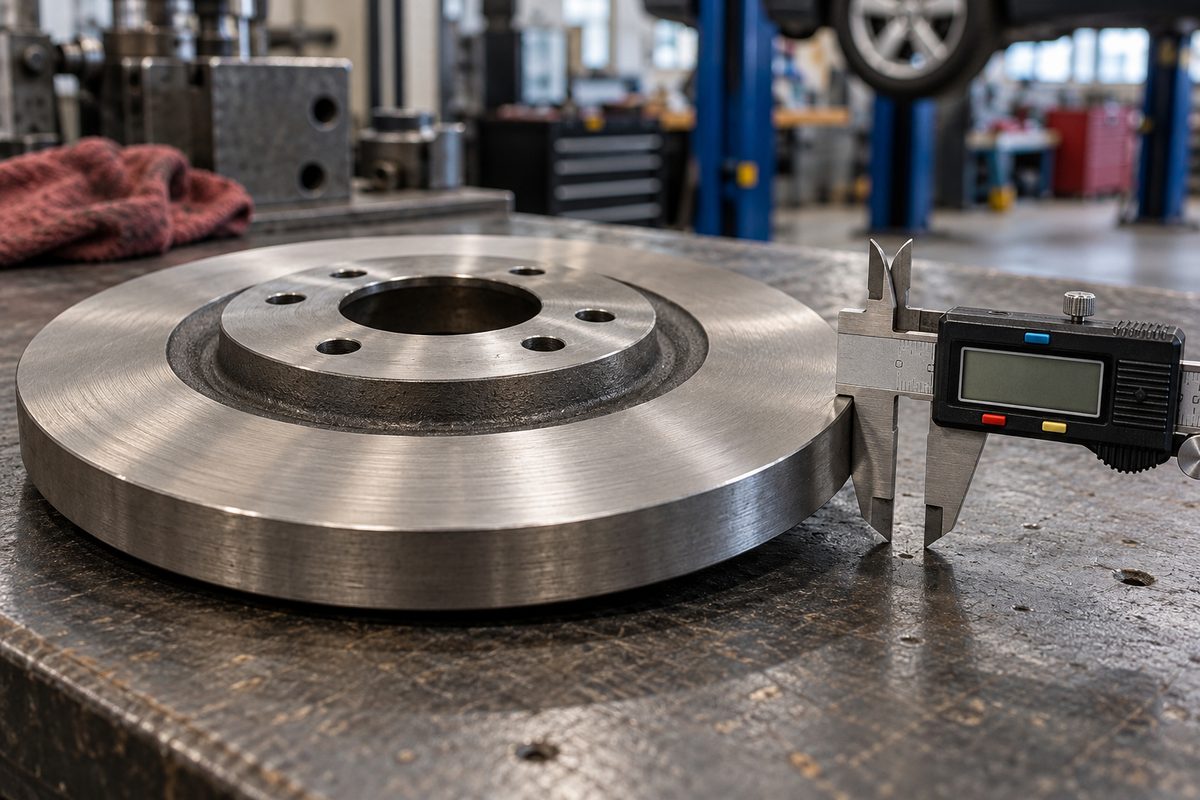

We verified the OEM cross-reference part numbers against Honda factory EPC schematics and selected Solid Rear Replacement Brake Rotors from our Charlotte facility inventory. These precision-turned solid discs feature a precision-machined center pilot bore, accurate 5×114.3 bolt circle PCD, and an integrated drum-in-hat inner surface optimized for electronic actuator hold. Each disc is double disc ground with a non-directional cross-hatch finish that promotes rapid transfer film bedding when paired with ceramic friction sets.
Our counter delivered the four pairs via regional courier dispatch within three hours. The collision technician verified zero bracket contact and measured total lateral runout at 0.0006 inches on the vehicle hubs.
Technical specifications and machining standards across our Charlotte brake rotor inventory
Every rotor on our shelves complies with SAE J431 mechanical property requirements for grey iron. Cheap offshore rotors frequently use recycled scrap iron with high porosity and irregular cooling voids, leading to severe thermal cracking around the ventilation posts. The ledger below lists our stocked rotor categories.
| Rotor Type | Metallurgy Grade | Ventilation Profile | Balancing Tolerance | Coating System | Unit Price Basis |
|---|---|---|---|---|---|
| Vented Front Heavy-Duty | G3000 Grey Cast Iron | Curved directional cooling vanes | Under 2.0 grams (mill cut) | Zinc dichromate hat & rim | $50.00 – $150.00 |
| Solid Rear Passenger Disc | G3000 Grey Cast Iron | Solid flat casting | Under 1.5 grams | Geomet anti-rust protective hat | $50.00 – $95.00 |
| Slotted & Vented Performance | High-Carbon Alloy Iron | Directional pillar vane | Under 1.0 grams (CNC balanced) | Black e-coat on full hat | $75.00 – $150.00 |
| Commercial Fleet Truck Disc | Heavy-Section G3000 | Thick-wall staggered vane | Under 2.5 grams | Industrial oil wash or zinc | $65.00 – $145.00 |
Our four counter audit checks before allocating brake rotors to your technician
Brake discs fail when installation tolerances are overlooked. Installing a rotor over a rusted hub flange introduces 0.003 inches of runout immediately, which wears into disc thickness variation in less than three thousand miles. We conduct four strict verifications before dispatching rotors from our warehouse floor.
Caliper Bracket Centering
We measure total hat height from the hub mating face to the outer friction plate. Even a 2mm discrepancy causes the brake caliper carrier to rub against the rotating disc face.
Left vs Right Airflow
Directional curved vane rotors must be paired correctly by vehicle side. Installing a right-hand rotor on the left side traps centrifugal heat inside the wheel cavity, reducing braking efficiency.
Minimum Thickness Stamping
Every rotor carries a laser-etched minimum discard thickness stamp. We ensure your technicians receive documentation specifying the exact service limit for future inspections.
Optical Micrometer Check
Random samples from every batch undergo micrometer thickness variation and dial indicator lateral runout checks on our granite inspection bench before rack placement.
Brake rotor warping fallacies, wheel lug torque standards, and practices we refuse to endorse
The automotive industry frequently talks about “warped rotors.” In metallurgical reality, cast iron brake rotors almost never warp into a potato chip shape under normal road temperatures. What drivers feel as warping is Disc Thickness Variation (DTV). DTV occurs when a rotor has excessive lateral runout on the hub, causing the brake pads to make light contact with the high spot once per revolution. Over time, friction material deposits unevenly onto that high spot, creating cemented carbide patches that pulsate when clamped.
AutoMoto Shop refuses to sell unmachined blank castings that have not been dynamically mill-balanced. We advise every technician to clean the vehicle hub flange down to bare metal with a wire brush and use a calibrated torque wrench on wheel lugs rather than an uncontrolled pneumatic impact gun. Proper installation preserves our under 0.001-inch runout guarantee and ensures smooth pedal feel for the life of the disc.
Submit your vehicle parameters to check brake rotor availability at our Charlotte counter
Enter your vehicle make, model, year, and 17-digit VIN. Our counter team will verify your rotor diameter, confirm wheel bolt pattern dimensions, and reserve front or rear pairs for will-call or courier delivery.
Brake Rotor Specification & Fitment Inquiry
Direct dispatch to our Charlotte parts counter at 606 NC Music Factory Blvd. We reply within two business hours.
